DTC Codes: Everything You Need to Know to Manage your Fleet

What are Diagnostic Trouble Codes (DTCs)?

Diagnostic Trouble Codes (DTCs) are codes that are stored by the onboard computer diagnostic system.

These fault codes identify vehicle malfunctions. You can read them by connecting a code reader or scanner to the vehicle's OBD-II port, a 16-pin connector found under the driver's side dashboard.

They are essential for everyone with a car, especially if you manage commercial vehicles.

History of DTC Codes

DTC codes were first used in the early 1980s for light- and medium-duty vehicles and were used only by manufacturers to indicate vehicle problems. In 1996, the Society of Automotive Engineers (SAE) created a standard for all manufacturers to use so that any code reader or scanner could read the codes.

Since 1996, all cars and light trucks sold in the United States have been required to be OBD-II equipped—a system that monitors your vehicle's performance and alerts you to any problems.

DTC codes and why they are important

Diagnostic troubleshooting codes are necessary because they help indicate where a problem is occurring in your vehicle. By reading the code, you can often narrow down the issue and save time and money on repairs.

The Society of Automotive Engineers (SAE) standard J2012 defines five digits for use in On-Board Diagnostics (OBD). The first digit indicates the system where the code was stored, while the second indicates the specific problem.

DTC Code numbers are composed of letters and numbers. The first letter indicates the system where the code was stored, while the second indicates the specific problem.

If your vehicle displays an error code, it's essential to understand what it means. These codes can help you determine the root cause of the problem.

The standardized codes are common among all car manufacturers, meaning a P0300 code on a Chevy indicates the same problem as it does on a GMC, Ford, or Toyota.

What are the Codes?

Types of troubleshooting codes

There are five main types of codes that you will find in a vehicle:

• P0- Codes that refer to powertrain problems
• P1- Codes that refer to emissions problems
• C- Codes that refer to chassis problems
• U- Codes that refer to network communication problems
• B- Body control module codes

DTC codes and their meanings

The following is a list of some common codes in vehicles and their meanings:

• P0- Powertrain
  • P0100 Mass Air Flow (MAF) Circuit / Range / Performance issue
  • P0102 MAF Circuit Low Input
  • P0103 MAF Circuit High Input
  • P0112 Intake Air Temperature (IAT) Circuit Low Input
  • P0113 IAT Circuit High Input
  • P0131 O₂ Sensor (pre-catalyst, bank 1) – low voltage
  • P0132 O₂ Sensor (pre-catalyst, bank 1) – high voltage
  • P0133 O₂ Sensor slow response
  • P0134 O₂ Sensor circuit: no activity detected
  • P0171 System too lean (Bank 1) – i.e., not enough fuel or too much air
  • P0172 System too rich (Bank 1) – too much fuel or not enough air
  • P0300 Random / Multiple cylinder misfires detected
  • P0301, P0302, … P0308 Misfire in cylinder 1, 2, … 8
  • P0325 Knock Sensor (KS) Circuit Malfunction
  • P0420 Catalyst System Efficiency Below Threshold (Bank 1)
  • P0430 Catalyst Efficiency Below Threshold (Bank 2)
  • P0440 Evaporative Emission (EVAP) System Circuit Malfunction
  • P0442 EVAP System Leak Detected (small leak)
  • P0455 EVAP System Leak Detected (gross leak)
  • P0500 Vehicle Speed Sensor (VSS) Malfunction
  • P0700 Transmission Control System (Malfunction Indicator)
• C- Chassis
  • C0000 Vehicle Speed Information Circuit Malfunction
  • C0035 Left Front Wheel Speed Sensor Malfunction
  • C0037- Right Rear Wheel Speed Sensor Circuit
  • C0040 Right Front Wheel Speed Sensor Malfunction
  • C0121 Steering Angle Sensor Signal Error / Circuit Fault (example)
  • C1234 Right Front Wheel Speed Sensor Fault (or related ABS speed signal)
• U- Network Communication
  • U0001 High Speed CAN Communication Bus “A” Off (or Bus Off)
  • U0073 Control Module Communication Bus “A” Off
  • U0100 Lost Communication With ECM / PCM “A”
  • U0121 Lost Communication With Anti-lock Brake System (ABS) Module
  • U0140 Lost Communication With Body Control Module
  • U0422 Invalid Data Received From Body Control Module
• B- Body Control Module
  • B1000 Push-Button Start Switch Circuit
  • B0010 Passenger Front Airbag Deployment Control Circuit
  • B1200 Body Module / HVAC control fault (temperature sensor/blower control)
  • B1350 Seat belt sensor or occupant classification system (varies by manufacturer)
  • B2780 Door lock/unlock circuit or module fault (example of convenience body function
• D- Data Link
  • DTC P0420- Catalyst System Efficiency Below Threshold (Bank 1)
  • U0100 – Lost communication with ECM/PCM (often data link or bus wiring issue)
  • U0140 – Lost communication with the body control module
  • U0073 – Communication Bus “A” Off (indicating a bus wiring or termination problem)
  • U0001 – CAN Bus “A” Off
  • U0101 / U0102 – Lost communication with other controllers

How to Read the Codes

To begin diagnosing issues with your vehicle, it is essential to obtain a code reader or scanner that is specifically compatible with your vehicle’s OBD-II system. This device is crucial for accessing diagnostic information.

After you have acquired the code reader or scanner, the next step is to connect it to your car's OBD-II port. This port is usually located underneath the dashboard, near the driver’s seat. Once you have securely plugged in the device, you will need to turn on the car's ignition without starting the engine.

By doing this, you enable the code reader or scanner to communicate with the vehicle's onboard computer system. Subsequently, the code reader will display the Diagnostic Trouble Code (DTC) readings, along with any pertinent diagnostic codes that may indicate existing issues within the vehicle. This information will be invaluable in understanding what may be malfunctioning or requires attention.

Use a GPS tracker to monitor the DTC codes for your fleet

While a scan tool does the job, if you manage a fleet of vehicles, installing GPS trackers is a better way to actively troubleshoot diagnostic codes across all your vehicles. In addition to tracking the location and status of your vehicles, a GPS tracker can alert you when check engine lights happen so you can make decisions right away.

Additionally, a GPS tracker will allow you to view historical DTC code data, enabling you to track trends and patterns across your entire fleet. This can be helpful in preventative maintenance and troubleshooting. Plus, you can assess the severity of an issue and better determine if rushing to a mechanic is necessary for a particular check engine light.

What to do if you get a DTC code

When you receive a DTC, or Diagnostic Trouble Code, the initial action you should take is to compare that code with a list of standard codes that are commonly used. This list is often available in the vehicle's manual or online. If you do not find the code on that list, it may be helpful to search online for more information about that specific code. Many automotive forums and resources can help you understand what the code means.

After you have successfully identified the meaning of the DTC, you can proceed to take appropriate measures to address the underlying issue. In some instances, resolving the problem may be as straightforward as resetting the code using a scan tool, which would clear the warning from your vehicle's system. However, there are other situations where the problem is more complex, and it may require you to bring your vehicle to a qualified mechanic who can provide specialized repairs to fix the issue effectively.

Manage the Maintenance of Your Fleet

Diagnostic Trouble Codes, commonly referred to as DTC codes, can be an incredibly useful resource for effectively managing the maintenance of your fleet of vehicles. By maintaining a consistent record of each vehicle's diagnostic history, you can efficiently pinpoint any problems affecting specific vehicles in your fleet. Once these issues are identified, you can take prompt, appropriate action to address and resolve them.

Additionally, using the data these codes provide allows you not only to respond to current problems but also to prevent future issues proactively. By carefully monitoring trends and patterns in the DTC codes, you can gain insights to anticipate and mitigate potential maintenance concerns before they arise.

Diagnostic Trouble Codes (DTC) FAQ

What are Diagnostic Trouble Codes (DTCs)?

Diagnostic Trouble Codes — often called DTCs — are alerts from your vehicle’s onboard computer (ECU). They indicate that a specific system or sensor is not working as expected. DTCs are what trigger the Check Engine Light, helping technicians and fleet managers quickly pinpoint the problem.

How are DTCs structured?

Every DTC code has five characters:

• Letter: System type (P = Powertrain, B = Body, C = Chassis, U = Network)
• Digit 2: 0 = Generic (standardized), 1 = Manufacturer-specific
• Digits 3–5: The subsystem and fault type
• For example, P0171 means “System Too Lean (Bank 1).”

What’s the difference between generic and manufacturer-specific codes?

Generic codes (SAE codes) are the same for all vehicles.

Manufacturer-specific codes are unique to brands like Ford, GM, or Toyota and point to specialized components or modules.

What’s the difference between OBD-I and OBD-II systems?

• OBD-I (pre-1996): Early diagnostic systems that varied by automaker.
• OBD-II (1996+): Standardized system used in nearly all modern vehicles, allowing universal scanners to read codes.

What causes a DTC code to appear?

A DTC appears when a vehicle sensor detects data outside normal operating limits — such as low voltage, poor airflow, or a fuel mixture issue. Common causes include:

• Faulty sensors or wiring
• Clogged filters or fuel injectors
• Emission system leaks
• Communication errors between modules

What’s a “pending” code vs. a “confirmed” code?

• Pending code: The ECU detected a fault once, but it hasn’t occurred again.
• Confirmed code: The problem has occurred multiple times and triggered the Check Engine Light.

Pending codes may clear on their own if the fault doesn’t recur.

Can I clear DTC codes myself?

Yes — most OBD-II scanners or fleet telematics platforms can clear codes. However, the underlying issue must be fixed first; otherwise, the code will return after a few drive cycles.

What are permanent or hard codes?

Permanent (or “hard”) codes can’t be manually erased. They are stored in the ECU until the system verifies the issue has been repaired and the vehicle passes its internal self-tests.

What types of systems use DTC codes?

DTCs apply across several systems:

• Powertrain (P) – Engine, transmission, emissions
• Chassis (C) – Brakes, steering, traction, suspension
• Body (B) – Lighting, HVAC, airbags, seat sensors
• Network (U) – Module communication or data link issues

Do DTCs always mean something is broken?

Not necessarily. Some codes appear from temporary conditions, like:

• A loose gas cap
• Battery voltage dips
• Momentary sensor glitches

If a code reappears, it likely signals a real mechanical or electrical issue.

Will DTCs cause a vehicle to fail an emissions test?

Yes. Any active DTC related to emissions — or a lit Check Engine Light — will typically result in a failed emissions inspection.

How can fleet managers use DTC data?

Fleet tracking systems like Linxup automatically capture DTC alerts from every connected vehicle. Managers can:

• Get real-time maintenance alerts
• Track recurring fault trends
• Schedule repairs before breakdowns
• Reduce downtime and repair costs

By combining DTC monitoring with GPS tracking, fleets stay safer, more efficient, and more compliant.

How often should vehicles be scanned for DTCs?

Personal vehicles: When the Check Engine Light comes on or during regular service.

Fleet vehicles: Continuously — or at least weekly — through telematics platforms to catch minor issues before they become big ones.

Where can I find a complete list of DTC codes?

For quick reference, use a reputable DTC database such as:

AutoZone DTC Lookup

RepairPal Code Chart

CarParts.com OBD-II Index

Or check your vehicle manufacturer’s service manual for brand-specific codes.

Include DTC with Your Fleet Tracking Solution

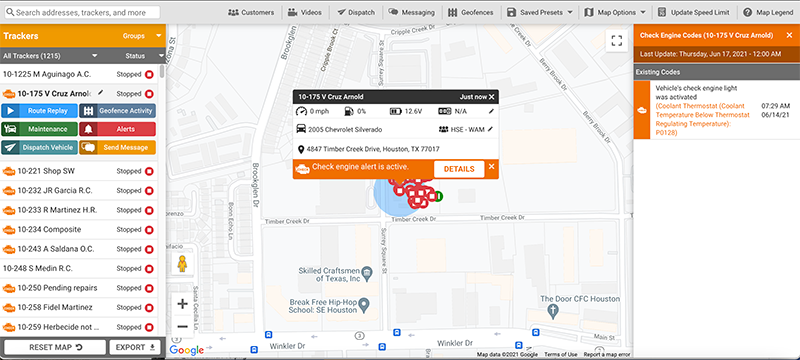

With Linxup Diagnostic Trouble Code Monitoring, you will be alerted to check engine lights when they happen and find the information you need to make maintenance decisions.

• When a vehicle has a check engine warning, an icon will appear next to that vehicle’s device in the Map view.
• Click Details to view the exact trouble code and determine the issue's severity—no need to rush to a mechanic for every check engine light.
• Choose to receive text, email, or app notifications when a check engine light is triggered.
